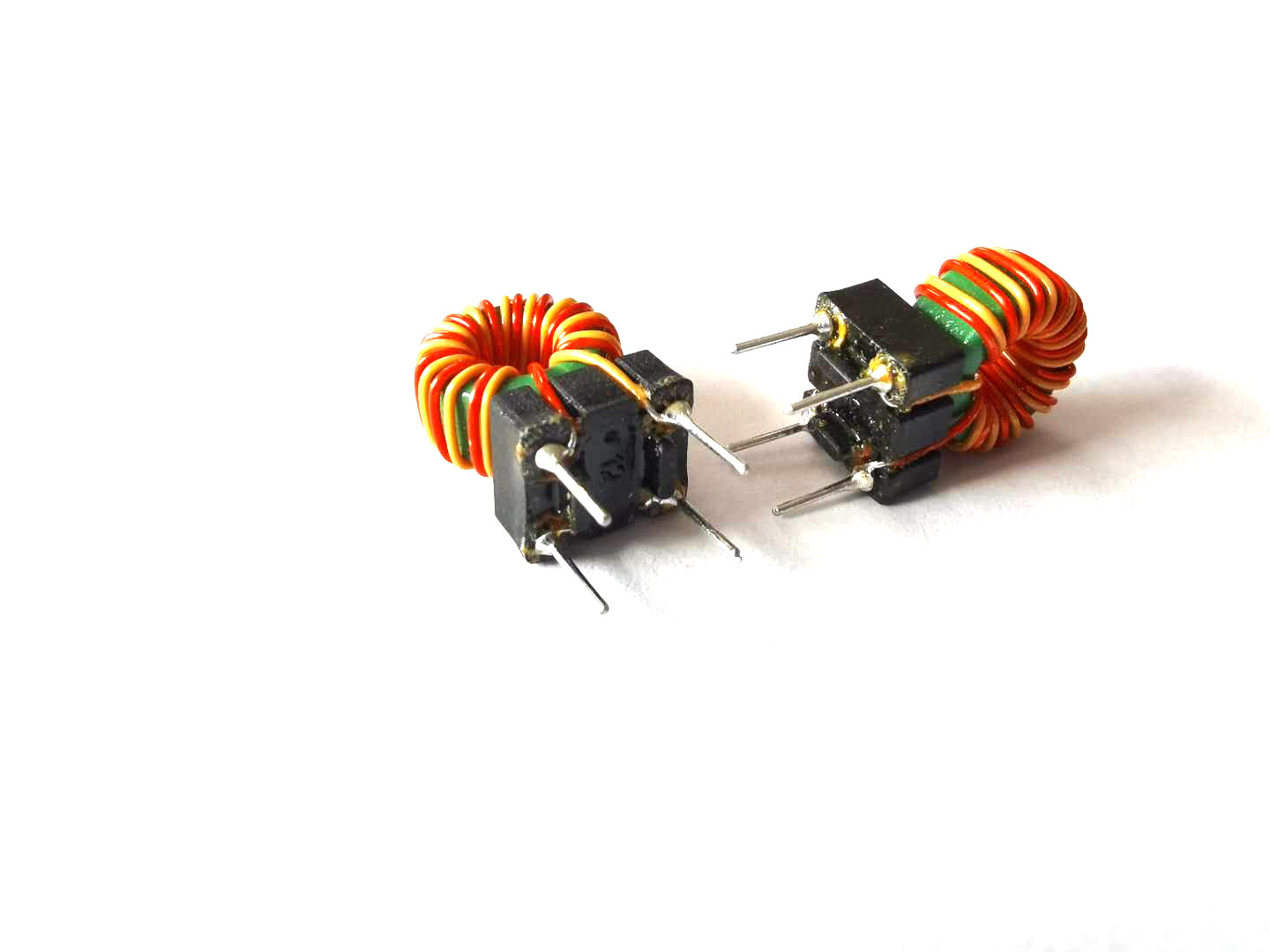

Filter Common Mode Inductors For Suppressing Emi Noise Of Electronic Equipment

The line filter prevents excessive noise from being generated between the electronic equipment and the AC line; in general, the focus is on the protection of the AC line. When using a common mode filter between the AC line (through a full impedance matching circuit) and the (noise) power converter. The common mode noise (noise is generated on the two grounded lines at the same time) moves in the direction of the filter from the load end, so that the noise shared by the two lines is greatly attenuated. Finally, the output of the filter added to the AC line (through a full impedance matching circuit) is so small that it can be ignored.

Applications

• Compact fluorescent lamp
• Television receiver
• Radio cassette player
• PC power supply
• Monitor,audio,VCD,DCD
• UPS
• The electronic apparatus
• The noise rejection
• Induction cooker,etc.

Diagram

HEMEI is a leading manufacturer of electromagnetic signal coupling, the domestic designer and manufacturer of magnetoelectric power conversion technology, has been committed to promoting the progress of signal coupling technology and passive power technology. The main products are magnetic coupling amplifiers, wave traps, power carrier signal coupling transformers, permalloy cores, electromagnetic loop coils, CT power supply, open and close current transformers and other products. Products are widely used in smart home appliances, energy management systems, smart meter reading systems, smart monitoring equipment, smart distribution equipment, etc. We are the supplier of Qualcomm, Huawei Hisilicon, ST Microelectronics, In addition, Permalloy and electromagnetic core products have the largest market share in the power distribution industry of the State Grid.

This power suply CT device is our newly developed product, which can used on 100V-220kv AC transmission line, the new product can be used as a continuously and stabely power supply device. Hemei also offer customers personal services contains OEM, ODM and OPM. We welcome sample order to test and check quality.
