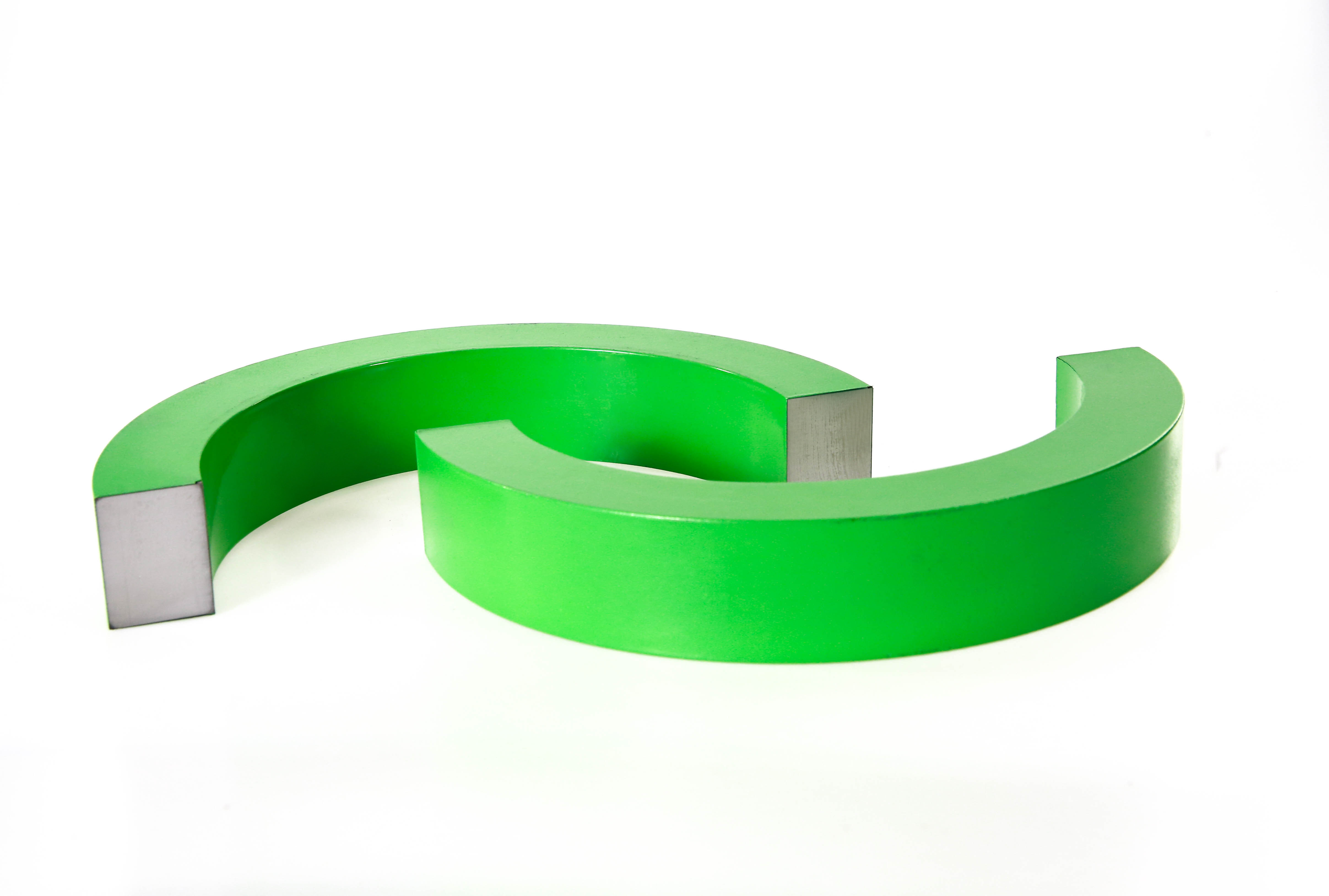

    Alloy 5A Soft Magnetic Powder Cores Transformer Iron 1j85

    Ask Lasest Price
    Brand Name : HEMEI
    Model Number : 55*75*10mm
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/month
    • Product Details
    • Company Profile

    Alloy 5A Soft Magnetic Powder Cores Transformer Iron 1j85

    Soft Magnetic Alloy 1j85 Permalloy for Transformer Core
    Mu 85 is a nickel-iron-molybdenum alloy with very high initial and maximum magnetic permeabilities and minimal core losses at low field strengths. This vacuum-melted product also offers the advantages of small size and weight in magnetic core and shielding materials. Due to its high magnetic permeability it is used in manufacturing transformers and inductors. Mu 80 is also used as a component for both saturating and non-saturating application.

    Application:
    They are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.

    Parameters

    Size(mm)Input current (A)Output Power(mW)
    55*65*51013mW min
    55*75*10538mW min
    55*75*12545mW min
    48*68*15550mW min
    55*75*20345mW min

    Alloy 5A Soft Magnetic Powder Cores Transformer Iron 1j85

    parameter:

    SIZEInput CurrentTurns ratioWorkloadVoltageOutput Power
    55*65*5mm10A900T1K3.7V13mW
    55*75*10mm5A400T400Ω3.9V38mW
    54*78*12mm5A500T1K7V49mW
    67*47*15mm5A400T750Ω6V48mW
    55*75*20mm3A250T500Ω4.3V36mW
    95*75*20mm3A 5A250T400Ω 300Ω3.4V 4.5V28mW 67mW
    85*55*25mm3A 5A250T600Ω 500Ω5.4V 7.6V48mW 115mW
    88*67*10mm5A400T500Ω4.5V40mW
    72*47*27mm3A 5A250T600Ω 500Ω5.6V 7.7V52mW 118mW
    63*50*12mm5A400T300Ω2.9V28mW
    58*42*8mm5A400T300Ω2.7V24mW
    58*45*20mm5A400T300Ω5.3V46mW
    50*35*15mm5A400T400Ω3.7V34mW
    48*38*10mm5A900T1K4.7V22mW
    43*33*6mm5A900T600Ω2.6V11mW
    40*25*15mm5A400T500Ω5V50mW
    43*33*9mm5A900T1K4.5V20mW
