HVAC 500mA Clamp On Current Transformer Leakage Clamp Type Ct Coil

Ask Lasest Price
Brand Name :	HEMEI
Model Number :	HM-CTC1535
Price :	USD30~100/PCS
Payment Terms :	L/C, T/T
Supply Ability :	10000PCS/MONTH

Add to Cart

Product Details
Company Profile

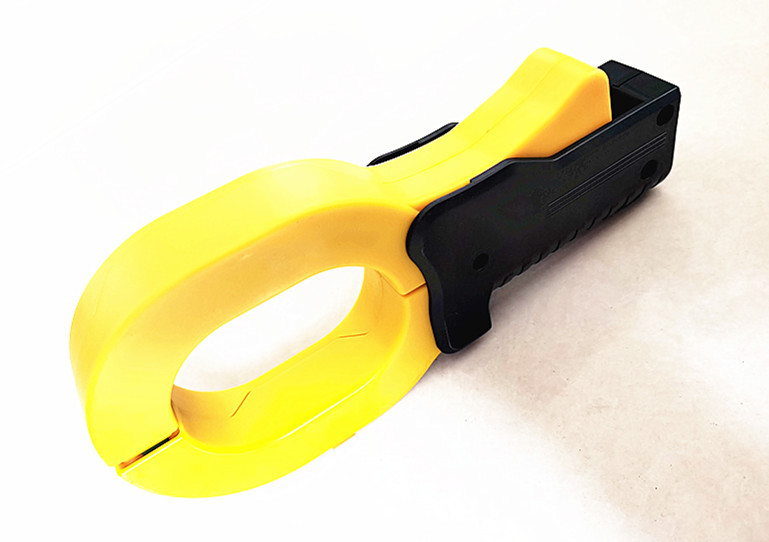

HVAC 500mA Clamp On Current Transformer Leakage Clamp Type Ct Coil

Current Clamp for AC Current 1000A/5A AC Clamp on Current Transformer Ce UL Clamp Type Leakage Current Sensor

The HM-CTC1535 is a high performance AC clamp on Current transformer with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.split core current transformers have been specifically designed to be mini size which implement the installation of small space, calmp-on design could be easily fit around cables without breaking the circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.

APPLICATION

Large industrial loads
Measuring around cable bundles
Power load monitoring
Electrical utility
HVAC
Industrial maintenance
Laboratory
Plant maintenance
Cable fault tester

Features
The structure of the self-locking, safe, easy to install, portable Wide inner window, allowing clamping of big cables or bus-bars Wide range of sizes to accommodate all the existing installations Isolated plastic case recognized according to UL94-V0 Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs.This CT can apply to large current testing, and it can also work with cable-fault measuring-testing instruments and Cable identification instrument for cable testing.
UL, CE mark
diagram
